Tantalum Sputter Target   ( Ta Sputter Target )

Shanghai Materials provides tantalum sputtering targets which widely used in displays , electronics and semiconductor etc. We ensure our Ta sputter targets in high quality and competitive price.
* Thickness:>1mm
* Circle Shape:Diameter <14inch
* Block Shape: Length <32inch, Width <12inch

Get The Latest Price

Related Product

  • Specifications
  • Parameter

FOLLOW US:

  • Specifications of Tantalum Sputter Targets ( Ta Sputter Target )
    * Standard: ASTM B364
    * Purity: 99.95% or 99.999%

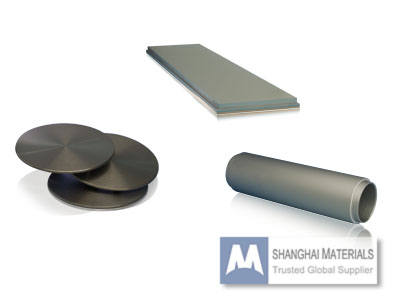

    * Target Shapes: circle , plate, square, wafer, rectangular, tube, step wafer, step rectangle, and customization.
    * Size: Circle Shape: Thickness >1mm ,  Diameter <14inch
               Block Shape: Thickness >1mm , Length <32inch, Width <12inch
    * Materials:
            RO5200
            (unalloyed tantalum, electron-beam furnace or vacuum-arc melt)
            RO5400
            (unalloyed tantalum, powder-metallurgy consolidation)
    * Features:Corrosion resistance
                    Workability
                    Long service life
    * Applications ：Electronics & Semiconductor
                            Displays
                            Magnetic Data Storage
    Tantalum Sputtering Targets


    If you are interested in our tantalum sputtering targets , please submit the webform below with the sizes . We will quote the latest price to you within one business day . Customization and bulk orders are our specialty.

  • Detailed informations :
     Spceial requirements if you need , please feel free to send us Email: sales@shanghai-materials.com .
    or submit the inquiry form in bottom  of this page.

    Mechanical Properties of Tantalum RO5200 / RO5400
    Grade Temper
    Tensile Strength(min.) Yield Strength(min.) Elongation(min.)
    RO5200 30000lbs/inch2 (207MPa) 20000Lbs/inch2 (138Mpa) 20%
    RO5400 30000lbs/inch2 (207MPa) 20000Lbs/inch2 (138Mpa) 20%

    Chemical Composition of Tantalum RO5200 / RO5400
    Grade Elements
    C O N H Fe Mo Nb Ni Si Ti W
    R05200 (%,Max) 0.01 0.015 0.01 0.0015 0.01 0.02 0.1 0.01 0.005 0.01 0.05
    R05400 (%,Max) 0.01 0.03 0.01 0.0015 0.01 0.02 0.1 0.01 0.005 0.01 0.05
