Air Framing Nailer   industrial framing nailer

Air Framing Nailer main featured with light wight and open nose design for easy extraction of a jammed nail. Superior power with hardened one piece positon for professional application. Shanghai Materials provides air framing nailers in the form of OEM and ODM.
Get The Latest Price

Related Product

  • Specifications
  • Industrial
  • Professional
  • Package

FOLLOW US:

  • Specifications of Air Framing Nailer (Industrial Framing Nailer)
    * Model:AN-C2
    * Weight:3.69kg-4.1kg
    * Max Pressure:120PSI
    * Nail Capacity:2*30PCS-80PCS

    Detailed parameters of Industrial Coil Nailer and Professional Coil Nailer
    Model Dimension Weight Required Pressure Max. Pressure Nail Capacity
    AN-CHF9034N 483mm*353mm*151mm 3.96Kg (7.93Lb) 80-120PSI (5.5-8bar) 120PSI (8.3bar) 2*40pcs
    AN-RHF9021N 530mm*350mm*108mm 3.96Kg (7.93Lb) 80-120PSI (5.5-8bar) 120PSI (8.3bar) 2*30pcs
    AN-RHF9021NS 530mm*350mm*108mm 3.96Kg (7.93Lb) 80-120PSI (5.5-8bar) 120PSI (8.3bar) 2*30pcs
    AN-RHF9028RN 485mm*371mm*110mm 4.1Kg (9.03Lb) 70-110PSI (4.8-7.5bar) 120PSI (8.3bar) 80pcs
    AN-CHF10034RA 475mm*366mm*163mm 3.69Kg (8.12Lb) 70-110PSI (4.8-7.5bar) 120PSI (8.3bar) 2*40pcs
    AN-RHF9021RA 142mm*366mm*520mm 4.0Kg (8.8Lb) 70-110PSI (4.8-7.5bar) 120PSI (8.3bar) 2*30pcs
    AN-CHF9028RA 166mm*356mm*486mm 3.8Kg (8.37Lb) 70-110PSI (4.8-7.5bar) 120PSI (8.3bar) 2*40pcs
    AN-CHF9034RA 163mm*367mm*493mm 3.75Kg (8.26Lb) 70-110PSI (4.8-7.5bar) 120PSI (8.3bar) 2*40pcs
  • Air Framing Nailer (Industrial Framing Nailer)
    * Type:AN-CHF9034N
    * Model:AN-C1
    * Dimension:483mm*353mm*151mm
    * Weight:3.96Kg (7.93Lb)
    * Required Pressure:80-120PSI (5.5-8bar)
    * Max Pressure:120PSI (8bar)
    * Nail Capacity:2*40PCS
    * Type:AN-RHF9021N/ RHF9021NS
    * Model:AN-C1
    * Dimension:530mm*350mm*108mm
    * Weight:3.96Kg (7.93Lb)
    * Required Pressure:80-120PSI (5.5-8bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:2*30PCS
    * Features: Iron and aluminum magazine
                         Rubber nose piece protects the working surface
                         Large piston ensure increased power
                         Manual operation
    Air Framing Nailer
    Air Framing Nailer

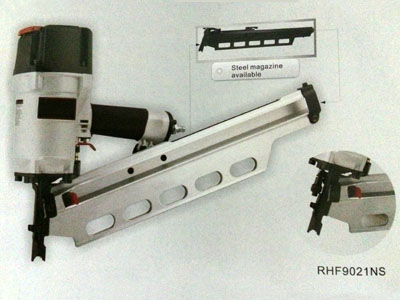

    AN-RHF9021N/ RHF9021NS

    * Type:AN-CHF9028RN
    * Model:AN-C1
    * Dimension:485mm*371mm*110mm
    * Weight:4.1Kg (9.03Lb)
    * Required Pressure:70-110PSI (4.8-7.5bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:80PCS
    Air Framing Nailer
    Air Framing Nailer
    AN-CHF9028RN


    * Type:AN-CHF10034RA
    * Model:AN-C1
    * Dimension:475mm*366mm*163mm
    * Weight:3.69Kg
    * Required Pressure:70-110PSI (4.8-7.5bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:2*40PCS
    Air Framing Nailer
    AN-CHF10034RA

    * Type:AN-RHF9021RA
    * Model:AN-C1
    * Dimension:142mm*366mm*560mm
    * Weight:4Kg (8.81Lb)
    * Required Pressure:70-110PSI (4.8-7.5bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:2*30PCS
    Air Framing Nailer
    AN-RHF9021RA

    * Type:AN-CHF9028RA
    * Model:AN-C1
    * Dimension:166mm*356mm*486mm
    * Weight:3.8Kg (8.37Lb)
    * Required Pressure:70-110PSI (4.8-7.5bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:2*40PCS
    Air Framing Nailer
    AN-CHF9028RA

    * Type:AN-CHF9034RA
    * Model:AN-C1
    * Dimension:163mm*367mm*493mm
    * Weight:3.75Kg (8.26Lb)
    * Required Pressure:70-110PSI (4.8-7.5bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:2*40PCS
    * Applications: Framing , Wall Sheeting, Roof Sheeting , Floor
    Air Framing Nailer
    AN-CHF9034RA


  • Professional Coil Nailer
    * Type:AN-CN45
    * Model:AN-C1
    * Dimension:120mm*286mm*306mm
    * Weight:2.75Kg (6.05Lb)
    * Required Pressure:70-110PSI (4.8-7.5bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:120PCS
    Professional Coil Nailer
    AN-CN45

    * Type:AN-CN45S
    * Model:AN-C1
    * Dimension:75mm*267mm*300mm
    * Weight:2.75Kg (6.05Lb)
    * Required Pressure:70-110PSI (4.8-7.5bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:120PCS
    Professional Coil Nailer


    * Type:AN-CN65
    * Model:AN-C1
    * Dimension:320mm*310mm*128mm
    * Weight:3.0Kg (6.60Lb)
    * Required Pressure:70-110PSI (4.8-7.5bar)
    * Max Pressure:120PSI (8.3bar)
    * Nail Capacity:250-300PCS
    Industrial coil nailer
    Professional Coil Nailer
    AN-CN65
  • Packaging for Framing Nailer:
    shanghai Materials checked each process from the delivery of raw materials up to the packing process to prevent damage and ensure our air nailers always at super quality.
