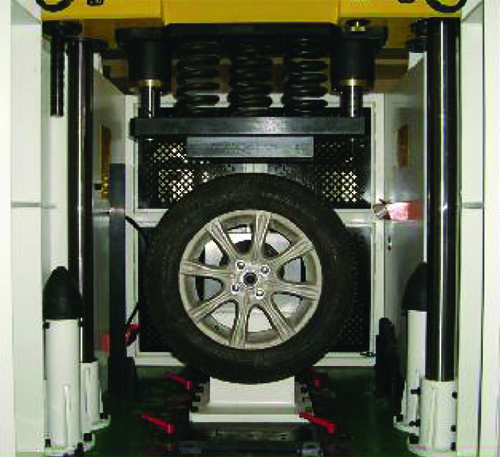

Specifications of 30°/90° Car Wheel Impact Test Machine
Model: ITM-3
Motor Power: 1.5KW AC
Test wheel specification
Test wheel diameter range: 13” ~ 26”
Wheel width: 4″~12″
Tire diameter range:Max. 900 mm
Impact support fixture:30° and 90°
Drop weights:
Main striker mass: 910±18 kg
Auxiliary striker mass: 100±4.5 kg
Striker drop height:Adjustable range ≥ 500 mm
Striker impact surface size:Length ≥ 380 mm, Width ≥ 152 mm, Striker side chamfer, radius of corner 5mm
Composite spring constant: 0.98 ~ 1.3 kN/mm
Initial deflection: 6mm
Spring quantity:3
Striker release mechanism:Free falling
Wheel support center:Located inside of striker center section area, offset ≤5mm
Machine dimension:L1,910 × W1,500 × H3,100 mm
Machine weight:6 tons
Test Standards:
JIS D 4103 Automobile parts－ Disc wheels－ Performance requirements and marking
Power requirement:
Working volt：480V/600V ф3 60Hz
Full-load power：2 kW
Compressed air pressure：0.6 MPa
Environment requirement:
Ambient temperature：+10 ~ +45℃
Relative humidity：0 ~ 85%
Test Room Height：> 4 meters
Foundation construction as per the foundation drawing of supplier
Features:
1. Certificated
2. User friendly
3. Accurate
4. Safety
5. Modular consept
6. Good after-sale service
Application: Used for 30° /90° Passenger Car Wheel Lateral Impact Test



Service for Car Wheel Impact testing machine
1. One year warrenty
2. Professional technology team provide one-site training
3. Lifelong maintenance


Packaging for Car Wheel Impact Testing Machine:
shanghai Materials checked each process from the delivery of raw materials up to the packing process to prevent damage and ensure our products always at super quality.
* Capacity: 1 pieces per 20 feet container
