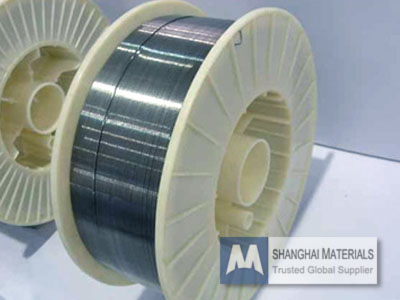

Tantalum Wire   ( Ta wire )

Tantalum wire is produced by tantalum rod which may be supplied in coils or straightened and cut to length according client requests. our Ta wires featured higher corrosion resistance in most environments creating additional value through extending the products service life.
* Purity: 99.99%
* Out Diameter:0.10mm～0.15mm, tolerance:±0.005
* Length: customization

Get The Latest Price

Related Product

  • Specifications
  • Parameter

FOLLOW US:

  • Specifications of Tantalum Wire /  ( Ta Wire )
    * Standard: ASTM B365
                     ASTM F560 (Medical Grade)
    * Materials:
            RO5200
            (unalloyed tantalum, electron-beam furnace or vacuum-arc melt)
            RO5400
            (unalloyed tantalum, powder-metallurgy consolidation)
    * Purity:  99.99%
    * Out Diameter:0.10mm～0.15mm, tolerance:±0.005
                           >0.15mm～0.30mm, tolerance: ±0.006
                           >0.30mm, tolerance: ±0.007
    * Length: customization
    * Features:High corrosion resistance
                    Cost effectiveness
                    Workability
    * Applications ：Components for anticorrosion equipment
                            Prosthetic devices
                            Ion sputtering and spray materials
                            High temperature furnace parts
                            Filaments for lighting applications
                            Laboratory equipment

    Tatanlum wire


    If you are interested in our tantalum wires ( Ta wires ), please submit the webform below with the sizes . We will quote the latest price to you within one business day . Customization and bulk orders are our specialty.

  • Detailed informations :
     Spceial requirements if you need , please feel free to send us Email: sales@shanghai-materials.com .
    or submit the inquiry form in bottom  of this page.
    Ta wires Diameter : inch (mm) Tolerance "  +/- inch (mm)　
    　0.010-0.020 (0.254-0.508) < 0.0005 (0.013)
    　0.020-0.030 (0.508-0.762) < 0.00075 (0.019)
    　0.030-0.060 (0.762-1.524) < 0.001 (0.025)
    　0.060-0.090 (1.524-2.286) < 0.0015 (0.038)
    　0.090-0.125 (2.286-3.175) < 0.002 (0.051)
    　0.125-0.187 (3.175-4.750) < 0.003 (0.076)
    　0.187-0.375 (4.750-9.525) < 0.004 (0.102)
    　0.375-0.500 (9.525-12.70) < 0.005 (0.127)
    　0.500-0.625 (12.70-15.88) < 0.007 (0.178)
    　0.625-0.750 (15.88-19.05) < 0.008 (0.203)
    　0.750-1.000 (19.05-25.40) < 0.010　(0.254)　
    　1.000-1.500 (25.40-38.10) < 0.015 (0.381)
    　1.500-2.000 (38.10-50.80) < 0.020 (0.508)
    　2.000-2.500 (50.80-63.50) < 0.030 (0.762)

    Mechanical properties:
    Product condition Annealed Half annealed Unannealed
    Tensile strength(Mpa) 300-600 >600～1000 >1000
    Elongation(%) 10-30 <5 <5

    Tantalum RO5200 / RO5400
    Grade Temper
    Tensile Strength(min.) Yield Strength(min.) Elongation(min.)
    RO5200 30000lbs/inch2 (207MPa) 20000Lbs/inch2 (138Mpa) 20%
    RO5400 30000lbs/inch2 (207MPa) 20000Lbs/inch2 (138Mpa) 20%
