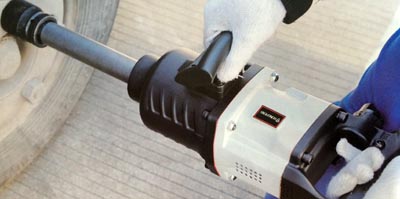

Heavy Duty Impact Wrench   Professional Impact Wrench

Shanghai Materials is the leading manufacturer and supplier of heavy duty impact wrench , air impact wrenches in China . Which feature with economic designed handle , special alloy stel strike structure mainly used in big truck repairing , big torque screw bolt assembly etc.
Get The Latest Price

Related Product

  • Specifications
  • Structure
  • Package

FOLLOW US:

  • Specifications of Heavy Duty Impact Wrench
    * Model:HVIW-1
    * Square Drive: 1inch
    * Working Torque (N.m ): 2700-3480
    * Free Speed:2800-4000 RPM
    * Features: Strong
                         Super Long life
                         Anti-fatigue
                         Excellent Torque / Weight Ratio\
                         45 degree air inlet design
                         Easy operation
    * Application:
                         Big truck repair
                         Big torque screw bolt assembly

    Detailed parameter of air impact wrenches ( pneumatic impact wrenches)
    Model No. Picture Square Drive Capacity Bolt Size Free Speed (RPM)  Working Torque Overall Length Air Inlet (NPT) Air Hose(ID) Avg. Air Consumption Net Weight Sug. Air Comp. (HP)
    in. mm Ft-Lb N.m in. mm cfm 1/min Lb Kg

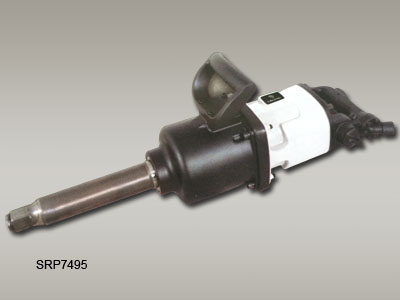

    SRP7495 Heavy Duty Impact Wrench 1 inch 2 50 2800 2500 3480 25.4 644 1/2 5/8 43 1225 41.6 18.9 5
    SRP7488 heavy duty impact wrench 1 inch 2 50 3600 2200 3100 23.11 586 1/2 5/8 40 1140 35.9 16.3 5
    SRP7465 heavy duty impact wrench 1 inch 1-3/4 45 4000 2000 2700 22.99 584 1/2 5/8 35 998 34.2 15.5 5
    SRP7485 heavy duty impact wrench 1 inch 2 50 3600 2220 3000 23.07 636 1/2 5/8 40 1140 39.68 18 5

  • Structure for heavy duty impact wrench

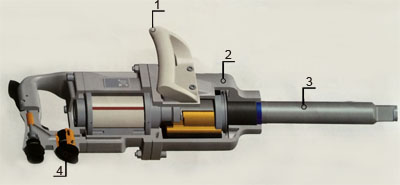

    structure of heavy duty impact wrench

    1. Economic design handle
    2. Metal housing
    3. Ultra-high alloy steels
        Syoeruir resustabce ti unoact abd abrasuion
    4. Provide four kinds of speed with forware and reerse

    Heavy duty impact wrench



  • Packaging for Air Impact Wrenches :
    shanghai Materials checked each process from the delivery of raw materials up to the packing process to prevent damage and ensure our impact wrenches always at super quality.
