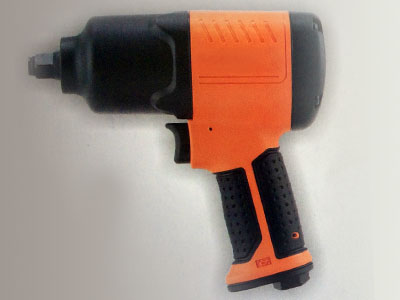

- Specifications of Professional Air Impact Wrench ( Professional Pneumatic Impact Wrench)
* Model:PAIW-1
* Square Drive: 3/8 inch , 1/2 inch , 3/4inch
* Working Torque (N.m ): 352-1000
* Free Speed:7000-12000 RPM
* Features: Twin hammer
Rear exhaust
Heavy duty
* Application:
Tire shop
Suspension
Frame and other heavy duty automobile work
Detailed parameter of professional air impact wrenches ( pneumatic impact wrenches)Model No. Picture Square Drive Capacity Bolt Size Free Speed (RPM) Working Torque Overall Length Air Inlet (NPT) in. mm Ft-Lb N.m in. mm SRP7424
3/8 inch 1/2 12 12000 260 352 5.9 150 1/4 SRP7424B 1/2 inch 1/2 12 12000 260 352 5.9 150 1/4 SRP7451
1/2 inch 5/8 16 7,500 450 610 7.28 185 1/4 SRP7460
3/4 inch 1 25 7,000 1000 1355 8.2 208 3/8 SRP17407
1/2 inch 5/8 16 7500 450 610 7.28 185 1/4
Model No. Picture Air Hose(ID) Avg. Air Consumption Net Weight Sug. Air Comp. (HP) cfm 1/min Lb Kg SRP7424 3/8 6 169.8 2.65 1.2 3 SRP7424B 3/8 6 169.8 2.65 1.2 3 SRP7451 3/8 6.5 183.9 4.64 2.1 3 SRP7460 1/2 9.5 269 6.6 3.0 4 SRP17407 3/8 6.5 183.9 4.64 2.1 3
Professional Air Impact Wrench air impact wrench
Shanghai Materials is the leading manufacturer and supplier of professional air impact wrenches , air impact wrench kits in China . Special designed with twin hammer , rear exhaust and best used for tire rotation , brake repairing , exhaust repairing , mechanical equipment bolt etc.
